358 Anti-climb Mesh High Security Fence
358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing.
358 security fence panel can be bent in part to enhance the aesthetic effect.
Our high security fencing systerm is well known in the world as an anti-climb & anti-cut through barrier, while providing the lowest level of visual impact to the surroundings.The panels are welded with high quality carbon steel wires. It is designed to give attractive, long lasting and secure perimeter protection for industrial and commercial properties, public utilities, and it is really suited for electronic alarm and detection systems - no blind spots for CCTV. It is also a good choice for Military, airports, secure units and prisons.
Mesh Pattern: 76.2mm (3") x 12.7mm (0.5") resistance welded at each intersection
Horizontal Wires: 4mm diameter at 12.7mm centers
Vertical Wires: 4mm diameter at 76.2mm centers.
It is also very difficult and time consuming to attempt to pass items from the protected area
through the fencing, and for this reason alone makes the protection of valuable wire and cable a viable proposition.
2D or 3D High Security 358 Mesh Fence
358 Security Mesh Panels with Razor Concertina Tape Toppings
Razor Wire for 358 Mesh

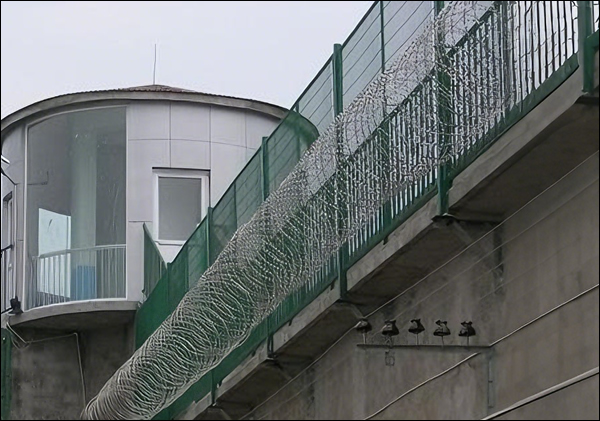

Prison Mesh with Crossed Razor Wire Tapes
Y Post Razor Barbe Wire 358 Fence
|
358 High Security System |
Panels |
Posts |
Fenceheight
m |
Panel Size
Height/Width
mm |
Section |
Length |
Number of fixings |
Inter- 1N °
Clamp |
Cornet- 2N °
Clamp |
2.0 |
2007 x 2515 |
60x60x2.5mm |
2700 |
7 |
14 |
2.4 |
2400 x 2515 |
60x60x2.5mm |
3100 |
9 |
18 |
3.0 |
2997 x 2515 |
80x80x2.5mm |
3800 |
11 |
22 |
3.3 |
3302 x 2515 |
80x80x2.5mm |
4200 |
12 |
24 |
3.6 |
3607 x 2515 |
100x60x3mm |
4500 |
13 |
26 |
Feature:
- Aesthetically attractive
- Durable
- Easy and fast assembly with our various fence post systems
- Can be easily combined with our doors and gates
- Excellent good cost/quality ratio
Colors: Polyester coated Green RAL6005, red, yellow, whiteRAL9010 and so on.

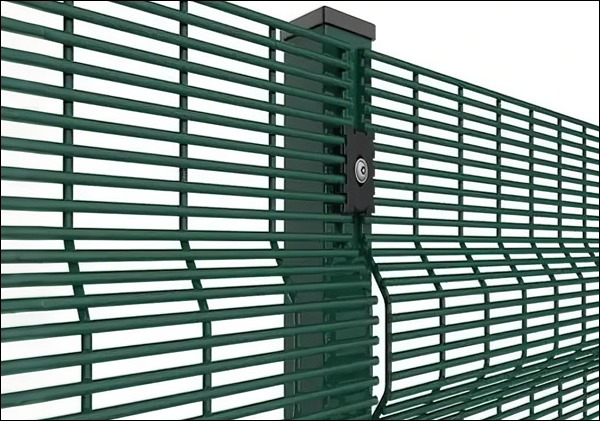

358 Secure Mesh (75x16mm aperture)
Specification
Wire: Ø 4mm Zinc-Alu drawn wire (Galfan or Bezinal); wire diameter tolerance: +/- 0.08mm
Transversal (horizontal) wires: 13mm centres
Longitudinal (vertical wires): 75mm centres
Aperture: 75mm x 16mm
Wire resistance welded at each intersection.
Tensile Strength: 500-625 MPA.
Zinc Coating Mass: 265 gm2
Panels size:
2100mm height x 2404mm length sheet
2384mm height x 2404mm length sheet
2700mm height x 2404mm length sheet

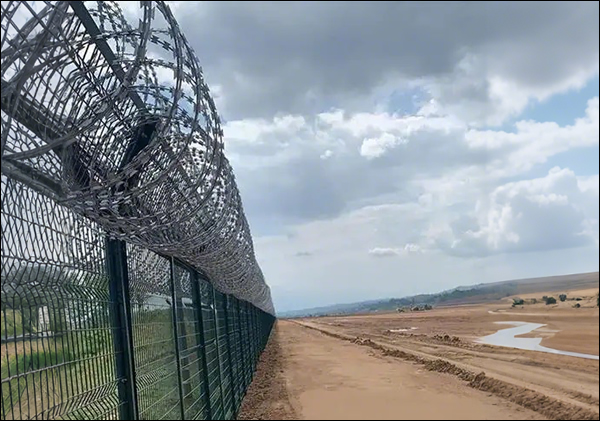

Y Post Concertina Razor Wire Plus 3D 358 Security Fencing
Complete High Security Fencing systems are made with Welded 358 Mesh Panels, Fence Posts and Gates and Concertina Coils Razor Wire. Popular forms of Razor Wire include: Single Line Barbed Wire Galvanized or Powder Coated, Single Coil of Razor Wire, Crossed Coil of Blade Type Razor Wire or Concertina, Flat Wrap Razor Wire. China 358 also supplies a rapid concertina deployment system (mobile aplication) to be able to expand and relocate the concertina multiple times. Concertina wire coils are widely used for security fencing of the army, pólice and emergency organizations.
The fence panels and gates are all made of thick steel wire heavily hot dipped galvanized or PVC coated.
|
