Crimped Woven Wire Mesh for Coarse Fabric Architectural Decorative Applications

ZhongPu Wire Mesh Co., Ltd. supplies pre-crimped wire mesh primarily in high tensile steel for excellent abrasion resistance in demanding conditions, with optional materials including stainless steel and brass wire. Pre-crimped Woven Wire Mesh, also known as coarse mesh fabric, is manufactured from heavy-gauge pre-crimped wire to ensure strong intersections and stable openings under high impact and vibration. Common weave types include double crimp, lock crimp, and intermediate crimp, each suited to different load and screening requirements. This woven wire mesh is widely used in mining, coal processing, quarry screening, construction, and food processing. Customization options include wire diameter, mesh opening, panel size, material grade, and edge finishing to meet specific application needs.

Weaving method

Double Crimp Weave: pre-crimped wire intersections provide uniform openings and reliable vibration resistance for mining screening.
Intermediate Crimp Weave: added crimps allow larger mesh openings while maintaining stability for quarry screening.
Lock Crimp Weave: deep locked crimps prevent wire movement, ideal for heavy-duty vibrating screens.
Flat Top Crimp Weave: smooth surface reduces blinding and wear in coal and food screening.

Images

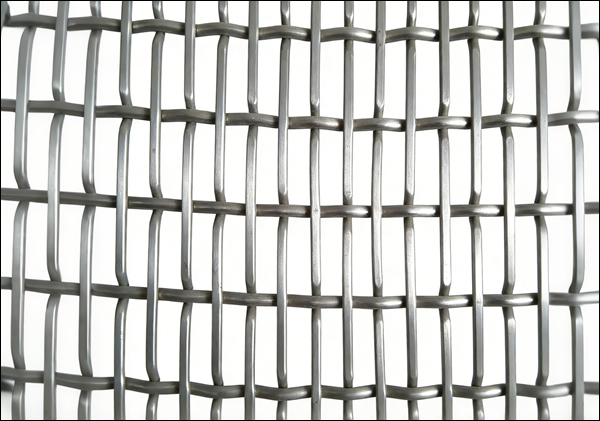

rectangular decorative crimped wire mesh

Decorative Rectangular Opening Crimped Wire Mesh Panel for Architectural Applications

Mesh Type: Decorative crimped wire mesh
Weave Style: Double crimp weave
Opening Shape: Rectangular
Opening Size: 20 × 40 mm to 50 × 100 mm
Wire Diameter: 2.0 – 4.0 mm
Material: Stainless steel 304 / 316
Surface Finish: Natural, brushed, or polished
Panel Thickness: 4 – 8 mm
Standard Panel Size: 1000 × 2000 mm
Applications: Facades, partitions, railing infill

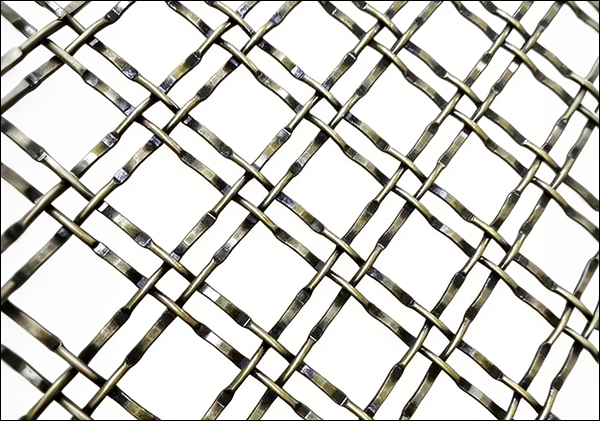

Square Opening Decorative Crimped Wire Mesh for Interior and Architectural Design

Mesh Type: Architectural crimped wire mesh
Weave Style: Intermediate crimp
Opening Shape: Square
Opening Size: 10 × 10 mm to 40 × 40 mm
Wire Diameter: 1.5 – 3.5 mm
Material: Stainless steel, brass, bronze
Surface Finish: Antique, polished, natural
Sheet Thickness: 3 – 6 mm
Production Form: Sheet or panel
Applications: Feature walls, ceilings, screens

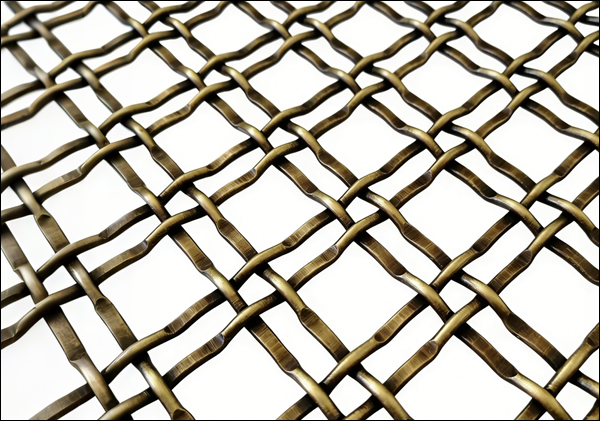

Decorative Crimped Wire Mesh with Bronze Finish for Interior Partitions

Mesh Type: Decorative crimped mesh
Weave Style: Lock crimp
Opening Shape: Square
Opening Size: 15 × 15 mm to 30 × 30 mm
Wire Diameter: 2.5 – 4.5 mm
Material: Stainless steel 304 316
Color: Bronze / antique brass
Panel Thickness: 5 – 9 mm
Standard Size: 1200 × 2400 mm
Applications: Room dividers, luxury interiors

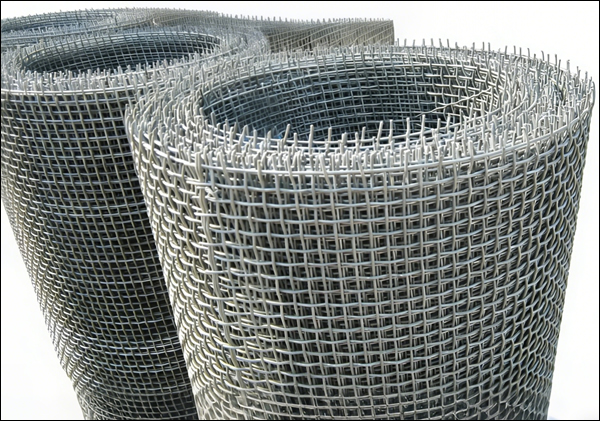

Heavy-Duty Crimped Wire Mesh Rolls for Architectural and Industrial Use

Mesh Type: Crimped wire mesh roll
Weave Style: Double crimp
Opening Shape: Square
Opening Size: 25 × 25 mm to 75 × 75 mm
Wire Diameter: 3.0 – 6.0 mm
Material: Carbon steel or stainless steel
Surface Finish: Galvanized or plain
Roll Width: 1.0 – 2.0 m
Roll Length: 10 – 30 m
Applications: Screens, barriers, enclosures

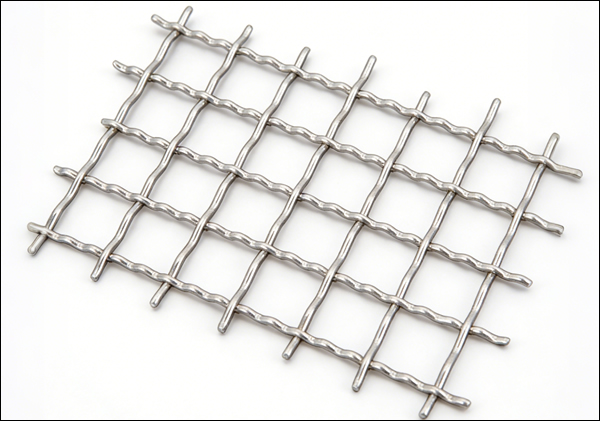

Intermediate Crimp Wire Mesh Panel with Stable Structure and Uniform Openings

Mesh Type: Intermediate crimp wire mesh
Weave Style: Intermediate crimp
Opening Shape: Square
Opening Size: 20 × 20 mm to 60 × 60 mm
Wire Diameter: 2.0 – 5.0 mm
Material: Stainless steel 304
Surface Finish: Natural mill finish
Panel Thickness: 4 – 7 mm
Panel Size: 1000 × 2000 mm
Applications: Screens, architectural panels

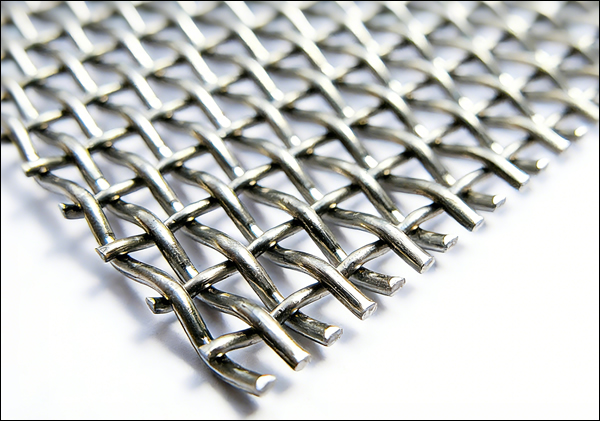

Flat Top Crimped Wire Mesh Panel with Smooth Surface for Decorative Use

Mesh Type: Flat top crimped mesh
Weave Style: Flat top crimp
Opening Shape: Square
Opening Size: 10 × 10 mm to 50 × 50 mm
Wire Diameter: 2.0 – 4.0 mm
Material: Stainless steel or carbon steel
Surface Finish: Polished or galvanized
Panel Thickness: 3 – 6 mm
Sheet Size: 1000 × 2000 mm
Applications: Flooring, panels, infill

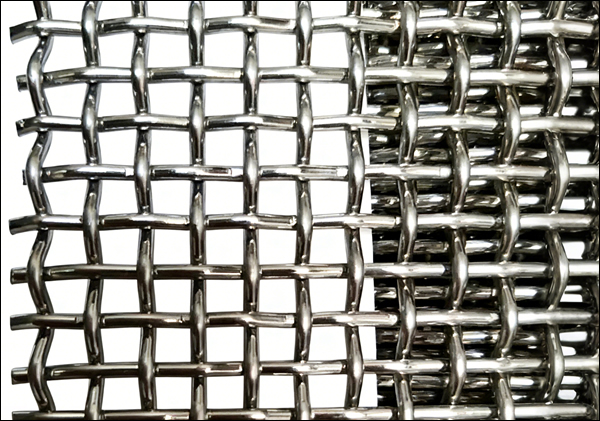

Plain Crimped Wire Mesh Sheet with Balanced Weave and Uniform Structure

Mesh Type: Plain crimped wire mesh
Weave Style: Double crimp
Opening Shape: Square
Opening Size: 5 × 5 mm to 40 × 40 mm
Wire Diameter: 1.0 – 3.0 mm
Material: Stainless steel 304
Surface Finish: Bright or matte
Thickness: 2 – 5 mm
Sheet Size: 1000 × 2000 mm
Applications: Decorative panels, filters

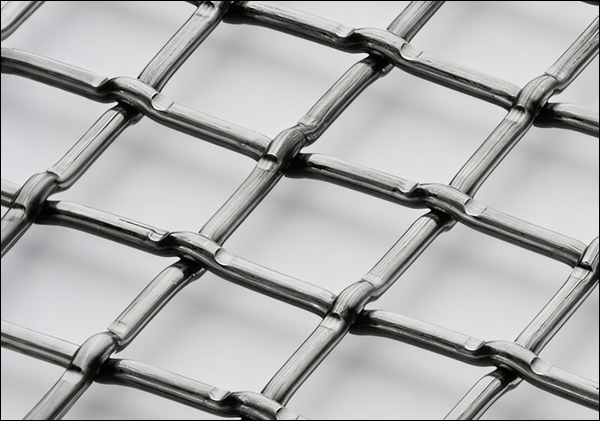

Lock Crimp Wire Mesh for Structural and Decorative Use

Mesh Type: Lock crimp wire mesh
Weave Style: Lock crimp
Opening Shape: Square
Opening Size: 25 × 25 mm to 80 × 80 mm
Wire Diameter: 3.0 – 6.0 mm
Material: Stainless steel or carbon steel
Surface Finish: Galvanized or plain
Panel Thickness: 6 – 10 mm
Panel Size: 1200 × 2400 mm
Applications: Facades, guards, partitions

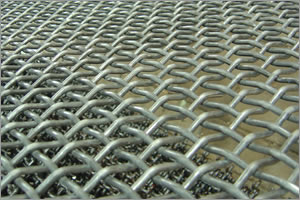

Crimped Wire Mesh, Coarse Heavy Type
Heavy Coarse Mesh Pre-crimped with Thick Wires

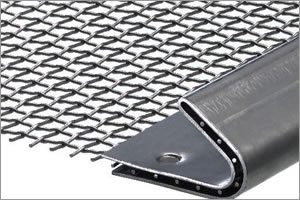

crimped wire mesh for vibraing screen fabric

Pre-crimped wire woven mesh has good tension and strength, suitable for vibrating screen work conditions

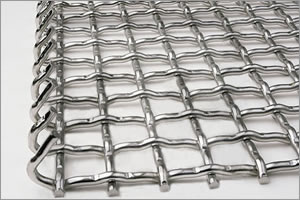

crimped woven wire mesh

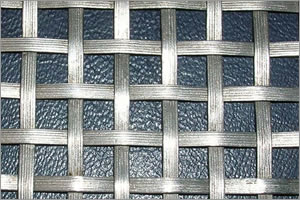

square mesh crimped steel

Pre-Crimped Wire Mesh Specification
Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
4.00	40	0.58	30	142
4.00	30	0.75	30	182
4.00	25	0.87	30	213
3.2	25	0.87	30	141
3.2	20	1.1	30	169
2.6	20	1.12	30	116
2.6	18	1.23	30	127
2.6	15	1.44	30	173
2.0	15	1.49	30	92
2.0	12	1.8	30	110
2.0	10	2.12	30	127
2.0	8	2.54	30	155
1.8	7	3	30	149
1.8	6	3.25	30	161
1.6	7	3	30	117
1.6	6	3.35	30	131
1.6	5	3.85	30	150
1.6	4	4.5	30	176
1.6	3	5.5	30	215
1.4	6	3.5	30	105
1.4	5	4	30	120
1.4	4	4.7	30	140
1.2	8	2.7	30	59
1.2	7	3.1	30	68
1.2	6	3.5	30	77
