Shale Shaker Screens for Oil Drilling and Solids Control
Shale shaker screens are essential filtration elements used in oil and gas drilling, mining operations, and industrial wastewater treatment. Their primary function is to remove drilled cuttings, sand, and solid particles from drilling fluid, ensuring stable mud circulation, reduced equipment wear, and improved drilling efficiency.
hexagonal steel frame shale shaker screen 630×1250 mm stainless steel mesh for oilfield solids control
Specifications & Dimensions
- Screen Type: Hexagonal hole steel frame
- Mesh Material: 304 / 316 stainless steel multi-layer
- API Rating: API 60 – API 270
- Panel Size: 585 × 1165 mm, 630 × 1250 mm, 700 × 1050 mm
- Open Area: 40–45% effective filtration area
- Characteristics: Strong against vibration, ideal for high-viscosity mud
pyramid shaker screen replacement for fc 500 corrugated composite panel API 70-325
Specifications & Dimensions
- Screen Style: Pyramid / corrugated panel
- Material: SS304 & SS316 mesh with composite backing
- API Rating: API 70 – API 325
- Panel Size: 710 × 626 mm (FC 500) or 1230 × 635 mm (FC 600)
- Design Benefit: +25% screening surface compared to flat screens
steel frame shaker screen with 7 support bars API 60-325 high-strength rectangular panel for drilling mud system
Specifications & Dimensions
- Frame Material: High-strength carbon steel + powder coating
- Mesh Material: 304/316 stainless steel
- Support Structure: 7 reinforced vertical support strips
- API Rating: API 60 – API 325
- Panel Size: 585 × 1165 mm, 630 × 1250 mm, or customized
- Bonding Type: Pre-tensioned and epoxy bonded
- Applications: High-load drilling rigs, offshore platforms
composite shaker screen green frame 1050×695 mm with rectangular mesh for solids control shale shaker
Specifications & Dimensions
- Frame Type: Composite polymer frame
- Mesh Material: SS304 / SS316 multi-layer mesh
- API Rating: API 60 – API 230
- Mesh Pattern: Rectangular bonded mesh
- Panel Size: 1050 × 695 mm or 1250 × 750 mm
- Frame Color: Green corrosion-resistant epoxy finish
- Advantages: Lightweight, long screen life, lower replacement cost

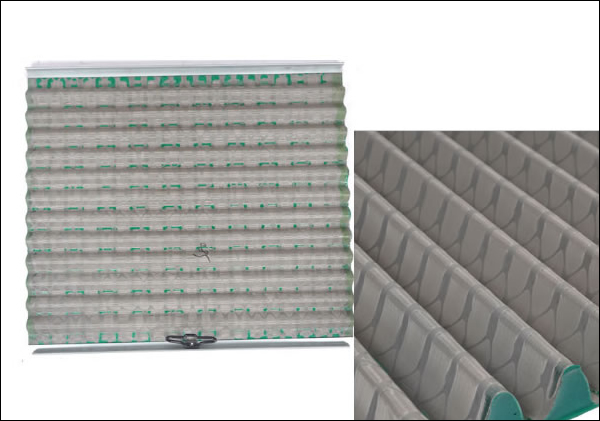

wave-type shale shaker screen 1165×585 mm corrugated panel stainless steel mesh for drilling mud filtration
Specifications & Dimensions
- Screen Type: Wave / Corrugated screen panel
- Material: 304 or 316 stainless steel wire mesh + composite frame
- Layers: 2–4 layers bonded mesh
- API Rating: API 80 – API 325
- Mesh Size: 80 × 80 mesh to 325 × 325 mesh
- Panel Size: 1165 × 585 mm or 1175 × 610 mm (custom sizes available)
- Support Structure: Corrugated wave profile to increase filtration area by 25–40%
- Applications: Oil & gas drilling solids control, high-flow mud systems
Shale Shaker Screen Types
- Hook Strip Flat Screen: Standard bonded mesh panel, suitable for most drilling rigs.
- Wave Screen: Corrugated surface increases filtration area by up to 30%, delivering higher flow capacity.
- Steel Frame Screen: High-strength structure for deep-well and high-pressure drilling conditions.
Choose based on formation particle mesh size
- Sandstone formations : API 200 mesh or finer
- Coarse formations : API 40–120 mesh
- Ensure correct size and hook type: e.g., 710 mm × 1250 mm, frame or hook strip corresponding to shaker brand.
| Specification | Details |
| Mesh Range | API 20 – API 325 |
| Structure Options | Hook Strip, Steel Frame, Pyramid / Wave |
| Mesh Layers | 2–4 layers stainless steel 304 / 316 |
| Screen Material | Stainless steel wire mesh + steel frame or PU gasket |
| Standard Dimensions | 585×1165 mm, 630×1250 mm, 710×1250 mm, 750×1150 mm, customizable |
| API Compliance | Fully compliant with API RP 13C |
| Flow Capacity | Up to 30% higher throughput with pyramid design |
| Service Life | 3–6× longer than conventional hook strip screens |
| Application | Oil drilling, HDD mud recycling, mining slurry separation |
Steel Frame Shale Shaker Screen
Advantages
- Rigid Steel Frame Support – welded or pressed structure prevents deformation
- Multi-Layer Stainless Mesh – 2–4 layers bonded for improved strength
- High Solids Control Efficiency – cleaner drilling mud, lower disposal costs
- Flat and Pyramid Options – increased screening area and fluid throughput
- Fast Replacement System – steel frame and side-tension installation
Common Dimensions
- 585 × 1165 mm
- 630 × 1250 mm
- 710 × 1250 mm
- 750 × 1150 mm
Available Materials
- Carbon steel or galvanized frame
- SS304 / SS316 / SS316L wire mesh
- Polyurethane or composite sealing gasket
Steel frame screens are mostly applied to the shale shakers with wedge fastening equipment.
Structure: They are constructed mostly with two or three stainless steel mesh fabric layers bonded tightly to the steel frame. The frame is made up of the high-strength square steel tube or flat
Steel welded to multi- ribbed construction. These layers are coupled with the frame through metal backing plate or bonded straightly as well. We possess the strong experience and the ripe technology,and will provide various specifications of steel frame screens to serve the clients' demands.
Features of Steel Framed Shale Shaker Screen:
.Different layers with different density.To arrange these layers reasonably and exactly,the screening effect will become more better.
.High strength frame,multi-ribs and the mesh cloth with moderate tension,from one reliable combination,which can increase screen's acceptabl flow,the intensity and the lifetime.
.The wedge-shaped fastening device,can make the erection of screens more handily and quickly.
.The mesh, divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch. Accessary prepared rubber stoppers can be used repair damages. By doing so,the operator can cut down the stop-time and reduce the cost.
