Wave Corrugated Screen Mesh, Vibrating Shale Shaker Mesh, Wave Type Flat Screen for Shale Shaker

Wave type screens are the replacement products of hooked flat screens used for shale shakers. The effective area is 125% to 150% of flat screens. Without changing the construction of shakers, the using of the Wave Type screens can improve the quality of drilling fluid and increase the production. We can supply Wave Type screens with mesh sizes ranging from 60 to 250.

Features of Wave Type Screen
1: Different layers with different density. By arranging these layers reasonably and exactly, the screening effect of Wave Type screen becomes more and better.
2: The waved cloth bonded to metal backing plate, has more surface. The Effective Area of a Wave Type screen obtain 125% to 150% of a flat screen so that Wave Type screen can load more drilling fluid flow.

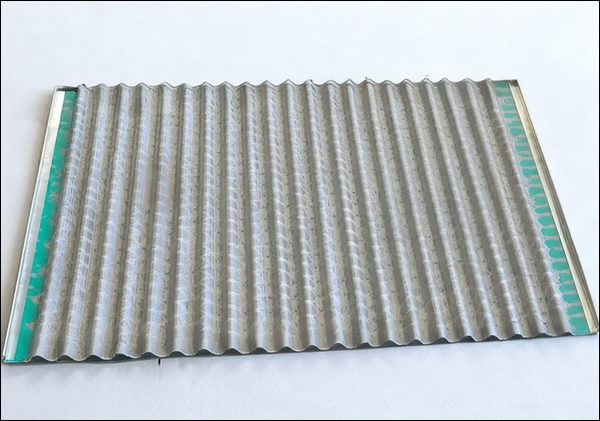

Single-Side Bordered Wave Type Shale Shaker Screen
Corrugated wave type shale shaker screen with bonded stainless steel mesh and side tension rails

Screen Type: Wave Type / Corrugated Mesh Shaker Screen
Construction: Corrugated multi-layer mesh bonded to a perforated steel plate
Mesh Range: API 60–200
Effective Area: 125%–150% improvement over flat screens
Layers: 2–3 layers with increasing mesh tightness
Material: SS304 / SS316 stainless steel mesh + steel side rails
Length: 585–1200 mm
Width: 450–700 mm
Thickness: About 25–35 mm
Edge Type: Aluminum/steel tensioning bars on both sides
Application: Replacement screen for various drilling shale shakers

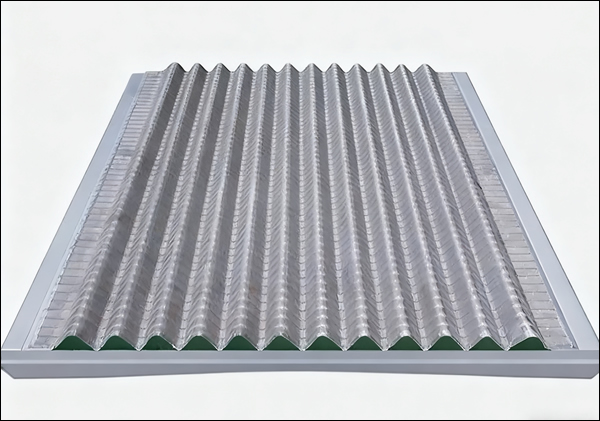

Wave Type Shale Shaker Screen – Steel Frame with High Wave Height
High-wave corrugated shale shaker screen with metal backing plate for maximum fluid handling capacity

Screen Type: High-Wave Corrugated Shale Shaker Screen
Surface Shape: Deep corrugated profile for increased flow capacity
Mesh Range: API 80–230
Effective Area: 1.25–1.5× that of flat screen
Material: Multi-layer stainless steel (SS304/SS316) + galvanized steel frame
Layers: 2–3 layers with graded pore size
Length: 700–1200 mm
Width: 600–1150 mm
Wave Height: 8–12 mm
Back Plate Type: Steel perforated support plate
Edge Type: Steel or aluminum frame sealing bars

Wave Type Shale Shaker Screen; Framed Structure
Wave type shale shaker screen with reinforced steel frame and multi-layer mesh for drilling fluid filtration

Screen Type: Wave Type / Corrugated Shale Shaker Screen
Structure: Heavy-duty steel frame with corrugated multi-layer stainless steel mesh
Mesh Range: API 60–250 (equivalent to approx. 60–250 mesh)
Effective Area: 125%–150% of standard flat screens
Screen Layers: 2–4 layers with different mesh densities
Material: SS304 / SS316 stainless steel wire mesh + powder-coated steel frame
Length: 585–1250 mm
Width: 610–1150 mm
Thickness: 30–40 mm
Bonding Method: Mesh bonded to perforated plate + metal frame
