Wedge Wire Profile Filter Screen Cylinders and Panels for Mining, Water Treatment

Zhongpu Wire Mesh Co. supplies Wedge Wire (Profile Wire) Screen Cylinders and Panels made from stainless steel 304, 316L, or customized alloys for high-strength, corrosion-resistant filtration. They are used in water treatment, mining, petrochemicals, food processing, and solid-liquid separation. Product types include wedge wire cylinders, sieve bend panels, support grids, intake screens, and slot tubes, all featuring precise slots, high structural stability, and strong flow capacity for reliable industrial filtration.

Welded Wedge Wire (Profile Wire) Screens deliver high screening efficiency with continuous slot openings that widen inward to promote smooth particle passage and prevent clogging. Available in flat panels, curved panels, and cylindrical screens, they offer a large open area for superior flow capacity. These wedge wire screens are manufactured using looped, round, or wedge-shaped profile wires with precise slot control and are framed with stainless steel or coated carbon steel for strength and durability.

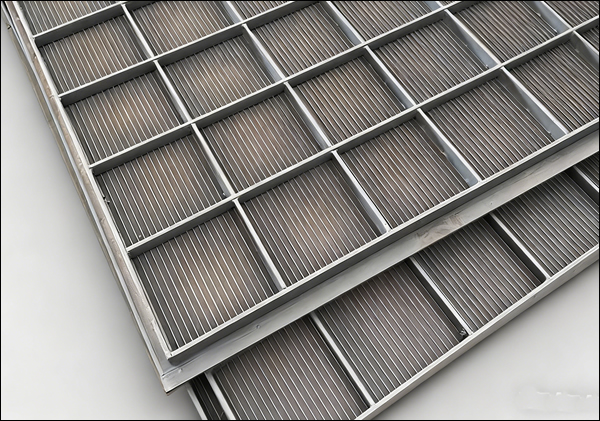

Flat stainless steel wedge wire screen panel with framed grid structure and uniform continuous slot openings.

• Materials: SS304, SS316L
• Slot Size: 0.10–3.0 mm
• Panel Size: 500×500 mm to 2000×3000 mm
• Wire Profile: 1.0×2.0 mm, 1.5×2.5 mm, 2×3.5 mm
• Support Rods: 3–5 mm round or triangular rods
• Open Area: 18%–60%
• Frame Thickness: 3–6 mm
• Applications: Water treatment, screening, filtration, dehydration

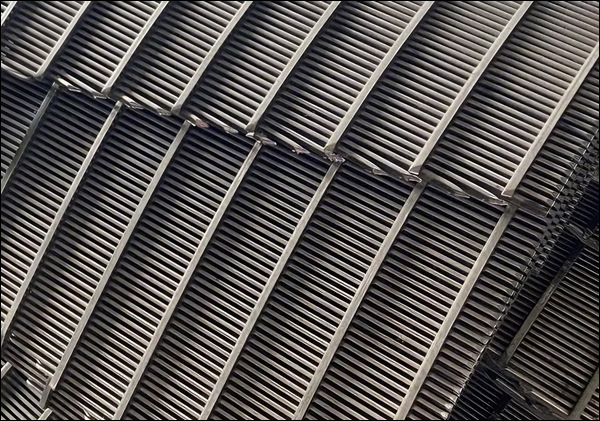

Curved wedge wire screen surface showing continuous slot V-wire structure for sieving and dewatering.

• Radius of Curvature: 600–1200 mm
• Screen Width: 500–2500 mm
• Slot Size: 0.20–1.5 mm
• Wire Profile: V-wire, 1.5×2.5 mm / 2×3.5 mm
• Support Rods: 3–5 mm
• Open Area: 10%–40%
• Arc Angle: 45° / 60° / 120° typical
• Applications: Gravity separation, dewatering, pulp processing, mining

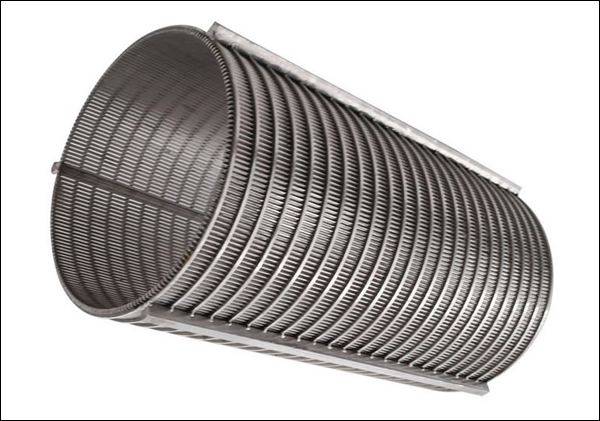

Stainless steel wedge wire slot tube with axial support rods and precision continuous slot openings.

• Type: Wedge wire screen tube / slotted pipe
• Diameter: 50–600 mm
• Length: 1–6 meters
• Slot Size: 0.10–3.0 mm
• Wire Profile: 1.5×2.5 mm, 2×3.5 mm
• Support Rods: 3×5 mm, 4×6 mm, or round rods
• End Types: Plain ends, flanged ends, threaded ends
• Materials: SS304, SS316L, Duplex steel
• Applications: Water well screens, intake screens, oil filtration

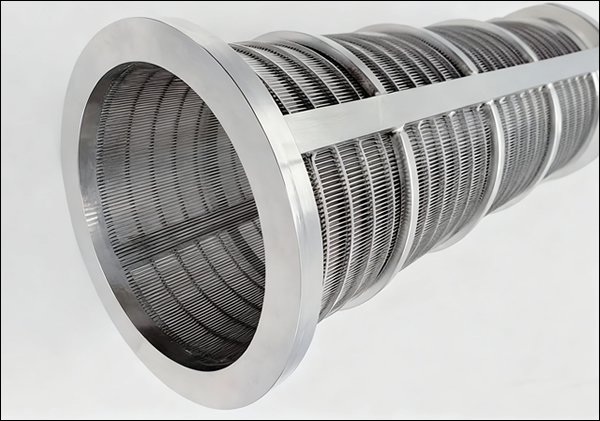

Wedge wire cylindrical screen with continuous slot V-wire profile and internal axial support rods.

• Type: Wedge wire cylindrical screen
• Diameter: 80–1000 mm
• Length: 300–3000 mm
• Slot Size: 0.10–2.5 mm
• Wire Profile: V-shaped wires, 1×2 mm to 3×5 mm
• Support Structure: Internal axial rods or rings
• Open Area: 20%–60%
• Materials: SS304, SS316L, 2205 Duplex
• Applications: Screening, filtering, dewatering in petrochemical, food, and mining

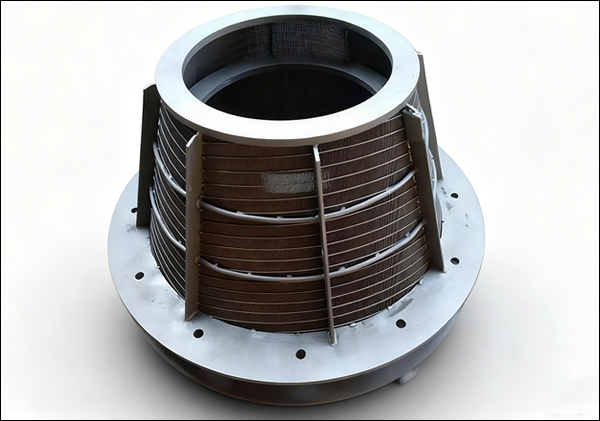

Conical wedge wire centrifuge basket with V-shaped profile wires and radial support rods

• Materials: SS304, SS316L, Duplex 2205
• Slot Size: 0.20–1.0 mm
• Wire Profile: V-shaped wedge wire (1.5×2.5 mm / 2×3.5 mm common)
• Support Rods: Radial & vertical rods, 3–6 mm
• Diameter (Top/Bottom): 300–900 mm (top), 150–500 mm (bottom)
• Height: 200–800 mm
• Open Area: 8%–22%
• Applications: Pulp screening, coal centrifuge dewatering, mineral separation

Specification including V Wire profile, wire sizes and rods table list:
