Flat Wire Conveyor Belt with Chain Drive for Industrial Food and Processing

ZhongPu Wire Mesh Co., Ltd. offers high-quality Flat Wire Conveyor Belts designed for efficient material handling in food processing, baking, freezing, heat treatment, packaging, and industrial conveying applications. These flat wire belts are available in straight-line, radius, ladder, and compound weave varieties, manufactured from stainless steel, carbon steel, or galvanized steel for durability and corrosion resistance. Standard belt pitches, widths, and edge finishes are offered, with full customization options including wire diameter, belt length, side guards, sprocket compatibility, and surface treatments. Flat Wire Conveyor Belts provide smooth operation, excellent airflow, easy cleaning, and long service life, meeting diverse industrial conveying requirements worldwide.

Type

• Straight Flat Wire Conveyor Belt: use flat wire thicknesses of 1.2–3.5 mm, belt pitches of 12.7–38.1 mm, and widths from 200–3000 mm. Belt lengths are custom-made, with load capacities of approximately 10–40 kg/m² for straight conveying lines.
• Radius Flat Wire Conveyor Belt: designed with inner turning radii of 300–2000 mm, wire thicknesses of 1.6–3.2 mm, and belt pitches of 19–38 mm. Standard widths range from 300–2500 mm, suitable for smooth curved conveying with loads of 8–30 kg/m².
• Ladder Type Flat Wire Conveyor Belt: feature an open design with wire diameters of 1.2–3.0 mm, cross-rod spacing of 25–50 mm, and belt pitches of 25.4–50.8 mm. Common widths are 200–2500 mm, ideal for airflow, drainage, and heat processing.
• Weave Flat Wire Conveyor Belt: use interlinked flat wires with thicknesses of 1.6–4.0 mm and pitches of 19–45 mm. Standard widths range from 300–3000 mm, providing higher strength and load capacity of 15–45 kg/m² for industrial use.
• Food-Grade Flat Wire Conveyor Belt: manufactured from stainless steel with wire thicknesses of 1.2–2.5 mm and pitches of 12.7–25.4 mm. Belt widths typically range from 300–2000 mm, offering smooth surfaces and easy cleaning for hygienic conveying.
• Galvanized Flat Wire Conveyor Belt: feature zinc-coated carbon steel wires with thicknesses of 1.6–3.5 mm and belt pitches of 19–38 mm. Typical widths range from 300–2500 mm, providing corrosion resistance for dry conveying with loads of 12–35 kg/m².
• Stainless Steel Flat Wire Conveyor Belt: available with wire thicknesses of 1.2–4.0 mm, belt pitches of 12.7–50.8 mm, and widths from 200–3000 mm. Designed for wet or corrosive environments, they support loads of 10–45 kg/m² and long service life.
• Flat Flex Wire Conveyor Belts: use round or flat wire diameters of 0.9–2.0 mm, belt pitches of 9.5–25.4 mm, and widths from 300–2000 mm. Overall lengths are customized, providing light to medium load capacities for baking, cooling, and food processing lines.

Classified by structure

• Balanced Weave Flat Wire Conveyor Belt: use alternating left- and right-hand flat wire spirals linked by cross rods, ensuring straight tracking and uniform tension, with wire thicknesses of 1.2–4.0 mm, belt pitches of 12.7–50.8 mm, and widths from 200–3000 mm.
• Rod-in-Rod Flat Wire Conveyor Belt (Flat Rod Belt): constructed by inserting flat rods through formed loops, creating a strong, open belt structure, with rod thicknesses of 2.0–6.0 mm, rod spacing of 20–50 mm, and belt widths ranging from 300–2500 mm.
• Hinge-Type Flat Wire Conveyor Belt (Link Belt): Hinge-type flat wire Link Belt conveyor belts consist of interlocking flat wire links connected by hinge rods, using wire thicknesses of 1.6–3.5 mm, hinge rod diameters of 3.0–6.0 mm, and widths of 200–2000 mm.
• Edge-Reinforced Flat Wire Conveyor Belt: feature welded or reinforced side edges to improve tracking stability and prevent edge wear, with flat wire thicknesses of 1.6–4.0 mm, belt pitches of 19–38 mm, and widths from 400–3000 mm.

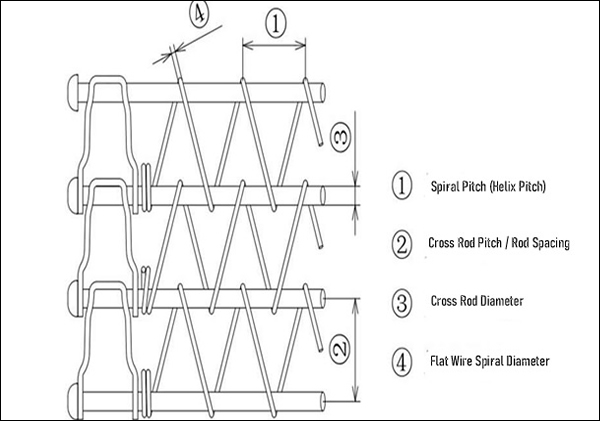

Flat Wire Conveyor Belt Structural Parameters

Spiral Pitch (Helix Pitch)

The center-to-center distance between adjacent flat wire spirals along the belt's running direction. This parameter directly affects belt openness, airflow, and product support.

• Pitch range: 6 – 50 mm
• Fine pitch (6–12 mm): small products, high support
• Medium pitch (12–25 mm): food processing, general conveying
• Large pitch (25–50 mm): heavy-duty or cooling applications


Cross Rod Pitch / Rod Spacing

The vertical spacing between adjacent cross rods (connecting rods) that interlock the flat wire spirals and maintain belt structure.

• Rod spacing range: 10 – 40 mm
• 10–15 mm: tight structure, precision conveying
• 15–25 mm: standard industrial flat wire belts
• 25–40 mm: lightweight or high-open-area belts

Cross Rod Diameter

The diameter of the straight rods inserted through the spirals, determining belt strength, load capacity, and wear resistance.

• Diameter range: 2.0 – 6.0 mm
• Common sizes: 2.5 mm, 3.0 mm, 4.0 mm
• Heavy-duty belts may use 5.0–6.0 mm rods


Flat Wire Spiral Diameter

The thickness (wire diameter) of the flat wire spiral forming the belt surface. This is a critical factor for durability, flexibility, and load rating.

• Flat wire thickness range: 1.0 – 4.0 mm
• Standard industrial range: 1.2 – 2.5 mm
• Heavy-load applications: 3.0 – 4.0 mm

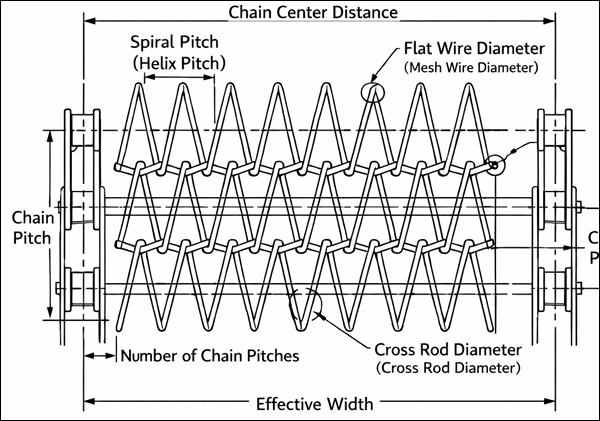

Spiral Chain Flat Wire Conveyor Belt for Food Processing and Industrial Conveying Systems

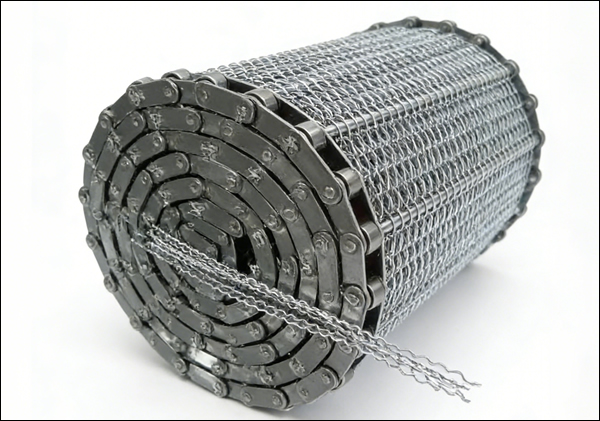

Chain-Driven Flat Wire Conveyor Belt with Rolled Structure for Heavy Duty Transport

Belt Structure: Flat wire mesh belt combined with side roller chain drive for positive tracking. Material Options: Stainless steel SUS304, SUS316, or carbon steel with surface treatment. Wire Type: Flat strip wire spirals interlinked with round or flat cross rods. Belt Width: Standard widths from 300–3000 mm. Belt Length: Custom lengths according to conveyor layout and drive system. Flat Wire Thickness: Typically 1.0–3.0 mm depending on load requirement. Rod Diameter: Common rod diameters range from 4–10 mm. Chain Pitch: Standard pitches 12.7 mm, 19.05 mm, or 25.4 mm. Edge Design: Integrated roller chains on both sides for synchronized drive. Operating Temperature: Suitable for continuous operation up to 400 °C (stainless steel).

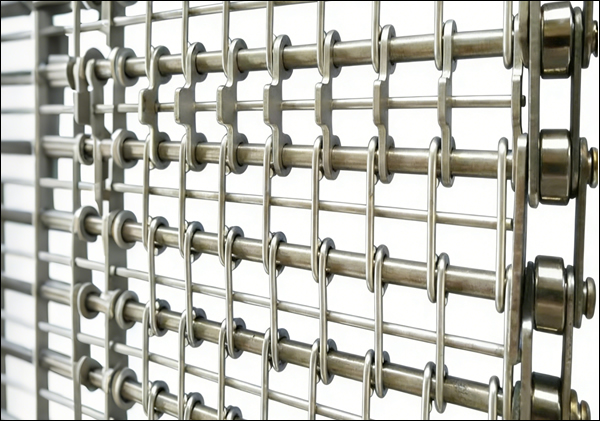

Honeycomb Flat Wire Conveyor Belt with Cross Rod Reinforcement

Belt Structure: Honeycomb-style flat wire belt with straight cross rod reinforcement. Material: Stainless steel 304 / 316 or heat-resistant alloy steel. Mesh Opening: Uniform rectangular openings for stable product support. Belt Width: Available from 200–2500 mm. Belt Length: Manufactured to endless or fixed-length configurations. Flat Wire Width: Standard flat wire width 5–12 mm. Rod Spacing: Rod pitch typically 20–50 mm. Edge Finish: Welded or clinched edges to prevent unraveling. Load Capacity: Medium to heavy loads depending on wire thickness. Application Range: Baking, cooling, washing, and industrial conveying systems.

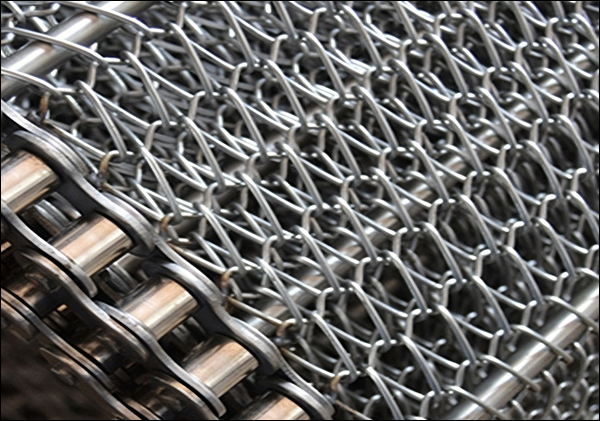

Stainless Steel Spiral Flat Wire Conveyor Belt with Chain Edge Drive

Belt Structure: Alternating spiral flat wires connected by cross rods. Material Grade: SUS304, SUS316, SUS310 stainless steel. Spiral Pitch: Fine to medium pitch for smooth conveying surface. Belt Width: Standard range 300–2400 mm. Flat Wire Thickness: Common thickness 0.9–2.0 mm. Cross Rod Diameter: Typical sizes 4–8 mm. Edge Type: Chain-driven edge or reinforced welded edge. Surface Finish: Bright annealed or pickled and passivated.

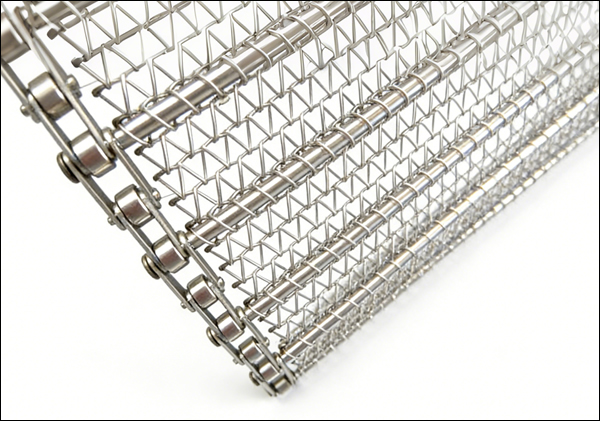

Edge-Reinforced Flat Wire Conveyor Belt for Stable Tracking

Belt Structure: Flat wire mesh belt with welded or chain-reinforced edges. Material Options: Carbon steel, galvanized steel, or stainless steel. Flat Wire Thickness: 1.2–3.5 mm depending on belt strength requirements. Rod Diameter: Available in 5–10 mm sizes. Belt Width: Custom widths from 400–3000 mm. Edge Reinforcement Type: Welded plate edge or roller chain edge. Pitch Accuracy: Precision-controlled pitch for straight running. Load Capacity: Designed for heavy or uneven product loads. Applications: Frying lines, industrial ovens, heavy conveying systems.

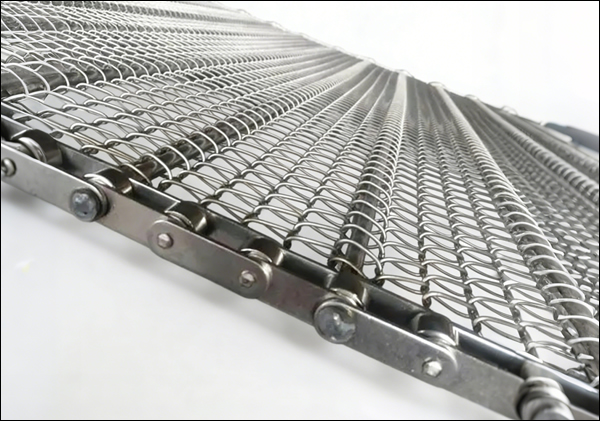

Flat Wire Link Conveyor Belt for Dryer and Cooling Systems

Belt Structure: Interlocking flat wire link design with smooth conveying surface. Material Grade: Stainless steel 304 / 316 or low-carbon steel. Mesh Opening: Balanced open area for airflow and drainage. Belt Width: Available from 250–2200 mm. Flat Wire Thickness: 0.8–2.5 mm standard range. Link Pitch: Regular pitch ensures uniform belt movement. Edge Style: C-shaped or welded edge finish. Belt Weight: Light to medium weight for energy-efficient operation. Use: Dryers, coolers, food processing, and packaging lines.

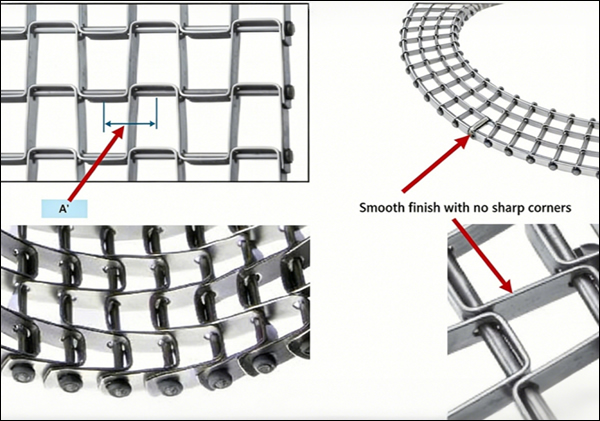

SUS 304 Stainless Steel Flat Wire Conveyor Belt with 1″ × 1″ Mesh

Mesh Size : 1″ × 1″ (25.4 × 25.4 mm) Flat Strip Size: 9.5 mm (W) × 1.2 mm (T) Connector Rod Diameter: Ø 3.0 mm Belt Width: 24″ (609.6 mm) Material: Stainless Steel SUS 304 (All Components) Sprocket Teeth: 13 Teeth Sprocket Bore: 40 mm Keyway Size: 12 × 8 mm Belt Quantity: 25 m Sprocket Quantity: 8 pcs (4 Driving + 4 Driven) Part 'A' : can be made wider.
