Quarry Screens - Coarse Mesh Sereen for Sand, Gravel, and Quarry Particle Separation

ZhongPu Wire Mesh Co., Ltd. offers durable Quarry Screens designed to efficiently filter, segregate, and separate sand, gravel, and quarry particles, reducing operating costs and improving processing efficiency. These coarse mesh screens are ideal for use in a variety of industries, including mining, construction, and aggregate processing.

Materials

• Manganese Steel (65Mn, 30Mn, 45#, 70#, 72A, 82B): Known for its high abrasiveness and anti-corrosive properties, manganese steel is perfect for heavy-duty applications that require superior durability.
• Stainless Steel: Highly resistant to corrosion, stainless steel screens offer enhanced longevity, making them suitable for harsh and wet environments.
• Carbon Steel: A cost-effective material choice for screening, carbon steel provides excellent performance for general applications without compromising on quality.
• Galvanized Mild Steel: Offers corrosion resistance and longer service life, especially in outdoor conditions.

Customizable to Fit Your Needs

• We provide customized Quarry Screens, choosing the most suitable materials based on your specific application requirements. Whether you need abrasion-resistant manganese steel, corrosion-resistant stainless steel, or budget-friendly carbon steel, we have the right solution for you.

Sand, Quarry Screen Coarse Mesh with No Hooks for Effective Segregation of Sand, Gravel, and Quarry Particles

Hole Size

• 1" (25mm) wide
• 1/2" (12mm) high
• 3" (75mm) spacing between holes

Dimensions

• Width Options: Standard sizes of 4' x 6' (1219mm x 1829mm) and customizable dimensions.
• Length Options: 8' (2438mm) or custom lengths available.

Mesh Opening Sizes

• 1" x 1/2" (25mm x 12mm)
• Custom hole sizes available for specific requirements.

Open Area

• Manganese Steel: 40-60% open area depending on gauge.
• Stainless Steel & Carbon Steel: 30-50% open area for optimal filtration.

Crimped Wire Quarry Screen, with Hook Strips, Magnese Steel Material

Hole Size

• Square Hole: 1" (25mm) to 4" (100mm) in size
• Rectangular Hole: 1/2" (12mm) x 2" (50mm) to 3" (75mm) x 6" (150mm)
• Custom hole sizes available to meet specific requirements.

Wire Diameter

• Available in gauges: 8 (4.0mm), 10 (3.0mm), 12 (2.5mm), 14 (2.0mm)
• Custom wire diameters available based on customer needs.

Panel Dimensions

• Width Options: Standard panels of 2' (610mm), 3' (915mm), 4' (1219mm), or custom widths.
• Length Options: Standard lengths of 6' (1829mm), 8' (2438mm), or custom lengths.
• Hook Strips: Suitable for hook strips of 5/16" (8mm) to 1/2" (12mm) thickness, compatible with the mounting frame.

Features

• Crimped Wire Construction: Enhances mesh strength and prevents material from slipping through.
• Hook Strip Design: Allows easy installation into a frame, securing the mesh firmly.
• Manganese Steel Strength: Offers superior impact resistance and long-lasting performance in abrasive quarry environments.

Applications

• Quarry Screening: Used to segregate and filter out sand, gravel, and larger aggregate materials.
• Mining and Aggregate Processing: Ideal for separating materials in mining, gravel pits, and construction sites.
• Heavy Duty Filtration: Effective in handling heavy-duty screening operations where wear resistance is critical.

Woven Mesh Screen with Pre-Crimped Wire for Enhanced Strength and Stability

Our woven mesh screens with pre-crimped wire offer a stable structure and excellent strength, ensuring long-lasting performance in demanding applications.

Technical Specifications

• Aperture Size: 0.15mm to 100mm
• Standard Roll Length: 2.0m

Standard Roll Width

• 0.914m (3ft)
• 1m
• 1.22m (4ft)
• 1.5m (5ft)
• 2m (6ft)

Quarry Screen Range

Quarry screens are available with aperture sizes ranging from 0.15mm to 100mm to suit heavy-duty screening applications.

Applications

• Chemical Industry
• Pharmaceutical Manufacturing
• Food Processing
• Ceramic Production
• Plastic and Rubber Manufacturing
• Paint Production
• Brewing
• Environmental Protection
• Mining

How to Order Quarry Screens? To place an order, please provide the following details:

• Material: Steel Wire
• Wire Diameter: 1.5mm
• Aperture Size: 2.0 x 20.0mm
• Quantity: 100 Rolls
• Additional Requirements: If you need smaller pieces cut to size, please specify the required dimensions.

Frames and Strips
Our quarry screens can be supplied with the following frame and strip options:

• Full Hook Strips
• Welded U-Sections
• Hook Strips with Sheathed Ends & U-Sections

Stainless Steel Slotted Mine Screen for Quarry Screening

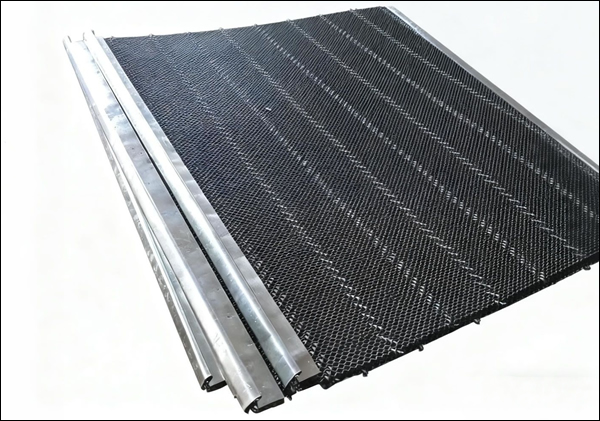

Heavy-Duty Coarse Wire Mesh Quarry Screen Panel with Hook Strips
